EN24 Alloy Steel

Grade Introduction:
EN24 steel Bright bar is a very high strength steel alloy which is supplied hardened and tempered. The grade is a nickel chromium molybdenum combination – this offers high tensile steel strength, with good ductility and wear resistance characteristics. With relatively good impact properties at low temperatures, EN24 is also suitable for a variety of elevated temperature applications. EN24 sections larger than 250mm may still be available in the quenched and tempered condition, but it should be noted that a fall-off in mechanical properties may be apparent approaching the center of the bar. It is therefore recommended that larger sizes are supplied in the annealed (softened) condition, and that quenching and tempering is carried out after initial stock removal. This should achieve better mechanical properties towards the core.

Equivalent Grades

  • BS 970:1955 EN24T
  • BS 970:1991 817M40T
  • German / DIN 34CrNiMo6
  • French AFNOR 35NCD6
  • American AISI / SAE 4340
  • German Werkstoff No. 1.6582
  • European Standard EN10277-5

Grade Application

  • High strength shafts
  • Punches & dies
  • Drill bushings
  • Retaining rings
  • Gears

Addition to other grades

MS, EN1A, EN3B, EN8, EN8D, EN9, EN19, EN24, EN31, EN32B, EN36C, EN41B, EN43B, EN47, EN353, IS2062, 42Crmo4, HCHCR, D2, D3, H-11, H-13, CW-1, OHNS, M2, M35, M42, DIN1.2714, P20, P20+S, P20+Ni, SCM420, ASTMSA-36, ASTMSA-105, SAE1018, SAE4140, SAE8620, 16MNCR5, 20MNCR5, C20, C45, C50, C60, CK45, 20C8, 40C8, 45C8, 55C8, C55MN75, SAE52100, S40C, S355J2G3.

Our Supply Range

We supply to automotive ancillaries and OEM customers. The products we manufacture are used as input for manufacturing of automotive and general engineering components. These components are further assembled into systems fitted in automobiles and other engineering applications.

Supply Condition SECTION Size (MM)
Min Max

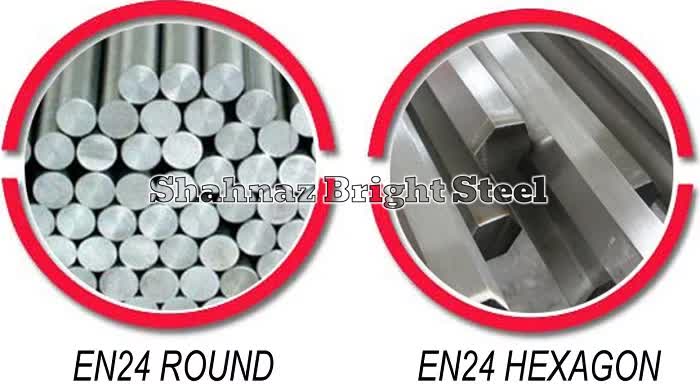

Cold Drawn Round Ø8 Ø70
Hexagon 8 A/F 27 A/F
Centerless Peeled Round Ø10 Ø70
Centerless Ground Round Ø8 Ø70

Mechanical Properties

Condition
Tensile
N/mm²
Yield
N/mm²
Elongation
%
Izod
KCV J
Hardness
Brinell
T
850-1000
650
13
35
248-302
U
925-1000
755
12
42
269-331
V
1000-1150
850
12
42
293-352
W
1075-1225
940
11
35
311-375
X
1150-1300
1020
10
28
341-401
Y
1225-1375
1095
10
21
363-429
Z
1550
1235
5
9
444

Heat Treatment

Heat treatment temperatures, including rate of heating, cooling and soaking times will vary due to factors such as the shape and size of each steel component. Other considerations during the heat treatment process include the type of furnace, quenching medium and work piece transfer facilities. Please consult your heat treatment provider for full guidance on heat treatment of alloy steel.

Hardening

EN24 is supplied ready heat treated. If further heat treatment is required annealed EN24 should be heated slowly to 830-850°C and after adequate soaking at this temperature quench in oil. Temper as soon as tools reach room temperature. Hardening from a neutral salt bath, will reduce the possibility of scaling or decarburization. Heat to 830-850°C and after equalization quench in oil.

Tempering

Heat carefully to a suitable temperature selected by reference to the tempering chart or table, soak at the temperature for 2 hours per 25mm of ruling section, then all to cool in the air. Tempering between 250-375°C is not advised as tempering within this range will seriously reduce the impact value. The tempering temperature is dependent on the required mechanical properties, the steel can achieve EN24U, EN24V, EN24W, EN24Y & EN24Z.

Chemical Composition

The following table shows the chemical composition of EN24 steel:

Element
C
Si
Mn
P
S
Cr
Mo
Ni
Content (%)
0.36-0.44
0.10-0.35
0.45-0.70
0.035 Max
0.040 Max
1.00-1.40
0.20-0.35
1.30-1.70

Hardness

248 – 302

Physical Properties

Thermal conductivity at °C
W/(m*k)
40.5
20
32.5
350
25.5
700

Thermal Properties

Thermal conductivity – 41.9 W/m-°C

Forging Properties

Preheat carefully, then raise temperature to 1000-1100°C for forging. Do not forge the steel below 850-1100°C. After forging cool slowly preferably in a furnace.

Stress Reliving

When parts are heavily machined, ground or otherwise subject to cold work, stress relieving will be beneficial prior to hardening. Heat carefully to 650-670°C, soak well before cooling in the furnace or in the air.

Normalizing

  • Nominal normalizing temperature:840-900°C.
  • Hold the temperature for several hours.
  • Cooling in the air.

Annealing

Heat slowly to 840-860°C, soak well and allow to cool with the furnace to 580°C, before withdrawing.
