16MNCR5
Grade Introduction:

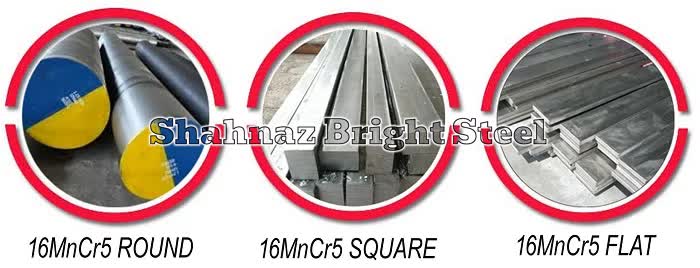

16MnCr5 steel is alloyed case hardening engineering steels for parts that require core tensile strength of 800 – 1100 N/mm² and good wearing resistance. It is an engineering material typically used to manufacture piston bolts, camshafts, levers, and other vehicle and mechanical engineering components. 16MNCR5 Grade is also available in different shapes like Round, Flat, Square steel Bars.
Grade Application
DIN 16MnCr5|1.7131 steel is widely used for a variety of applications in the used to gearings in rotating machinery. Typical applications such as valve bodies, pumps, and fittings, the high load of the wheel, bolts, double-headed bolts, gears, internal combustion engine. Electric locomotives, machine tools, tractors, steel rolling equipment, boring machine, railway vehicle, and mining machinery transmission shaft on the steel ball, roller and shaft sleeve, etc.
Equivalent Grades
- ASTM A29/A29M
- DIN EN 10083/3
- JIS G4053
- DIN DIN/T DIN17210
Addition to other grades
MS, EN1A, EN3B, EN8, EN8D, EN9, EN19, EN24, EN31, EN32B, EN36C, EN41B, EN43B, EN47, EN353, IS2062, 42Crmo4, HCHCR, D2, D3, H-11, H-13, CW-1, OHNS, M2, M35, M42, DIN1.2714, P20, P20+S, P20+Ni, SCM420, ASTMSA-36, ASTMSA-105, SAE1018, SAE4140, SAE8620, 16MNCR5, 20MNCR5, C20, C45, C50, C60, CK45, 20C8, 40C8, 45C8, 55C8, C55MN75, SAE52100, S40C, S355J2G3.

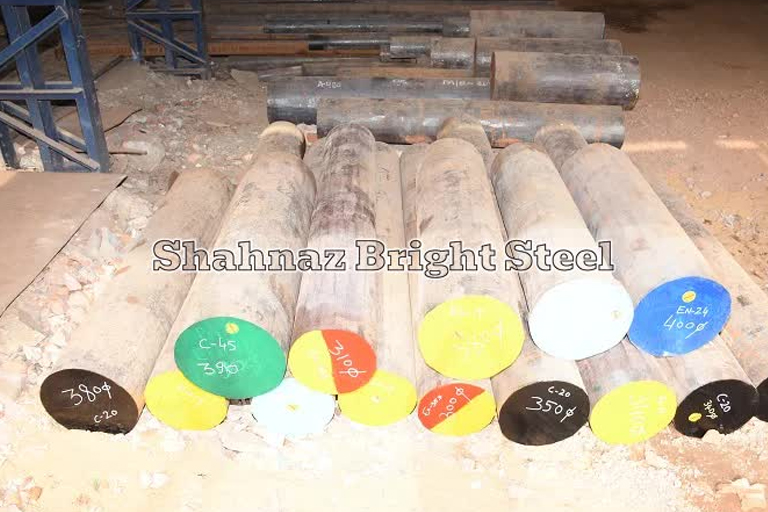

Our Supply Range
We supply to automotive ancillaries and OEM customers. The products we manufacture are used as input for manufacturing of automotive and general engineering components. These components are further assembled into systems fitted in automobiles and other engineering applications.
| Product Type | Size Range |
|---|---|
| Forged Round Bars | 140mm Dia to 850mm |
| Rolled Round Bars | 16mm Dia and above |
| Forged Flat Bars | Thickness: 32mm to 510mm, Width: 65mm to 1050mm |
| Rolled Flat Bars | Thickness: 6mm to 110mm, Width: 25mm to 510mm |
Chemical Composition
The following table shows the chemical composition of 16MNCR5 steel:
Element |
C |
Si |
Mn |
P |
S |
Cr |
Content (%) |
0.14～0.19 |
≤0.40 |
1.00～1.30 |
≤0.035 |
≤0.035 |
0.80～1.10 |
Heat Treatment
When hardening 16MnCr5 heat treatment temperatures, including the rate of heating, cooling, and soaking times will vary due to factors such as the shape and size of each steel component. Other considerations during heat treatment include the type of furnace, quenching medium, and workpiece transfer facilities. Please consult a heat treatment specialist for full guidance on heat treatment of 16MNCr5 steel.
Hardness
Brinell hardness in the condition |
||||||
+S max. |
+A max. |
+TH |
+FP |
|||
min. |
max. |
min. |
max. |
|||
* |
207 |
156 |
207 |
140 |
187 |
|
Hardening
Harden from a temperature of 860-980°C followed by water, oil, or thermal bath quenching.
Thermal Properties
Quantity |
Value |
Unit |
Thermal expansion |
10 – 10 |
e-6/K |
Thermal conductivity |
25 – 25 |
W/m.K |
Forging Properties
Hot forming temperature: 1100-850°C.
Stress Relieving
600-680°C
Mechanical Properties
The mechanical properties of annealed DIN 16MnCr5/1.7131 gearing steel (typical for steel) are outlined in the table below:
Tensile |
Yield |
Bulk modulus |
Shear modulus |
Poisson’s ratio |
Thermal conductivity |
MPa |
Mpa |
Gpa |
Gpa |
W/mK |
|
520 |
415 Min |
140 |
80 |
0.27-0.30 |
46.6 |
Physical Properties
Quantity |
Value |
Unit |
Thermal expansion |
10 – 10 |
e-6/K |
Thermal conductivity |
25 – 25 |
W/m.K |
Specific heat |
460 – 460 |
J/kg.K |
Melting temperature |
1450 – 1510 |
°C |
Density |
7700 – 7700 |
kg/m3 |
Resistivity |
0.55 – 0.55 |
Ohm.mm2/m |
Tempering
Tempering temperature: 150-200°C.
Normalizing
Temperature: 850-880°C.
Annealing
Heat to 650-700°C, cool slowly.
Density
7800
Welding
While this steel grade has satisfactory weldability, there is a possibility of cracks forming along welds.
Machinability
It has a good Machinability at the Soft-annealed Condition.
