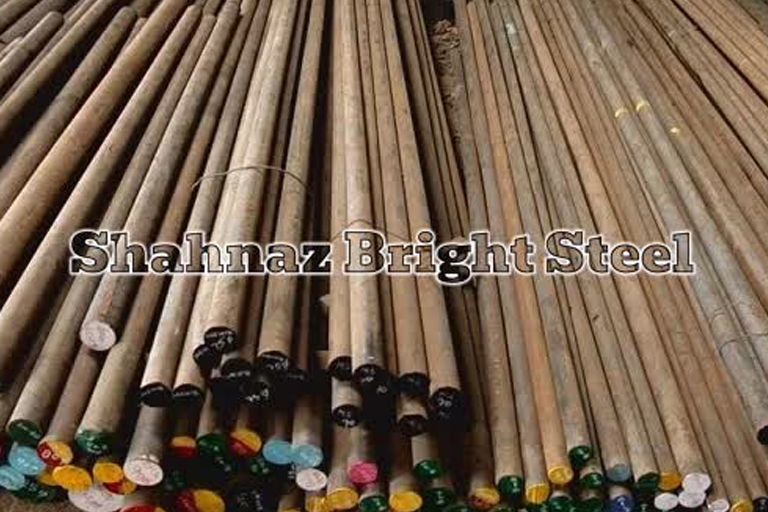

OHNS Steel Round Bar, OHNS Steel Round Bar Manufacturers, OHNS Steel Suppliers, OHNS Stockist, OHNS Steel Dealers, OHNS Steel Distributors, OHNS Wholesalers, OHNS Steel Traders, OHNS Steel Square Distributors, OHNS Steel Flat Bar, OHNS Steel Companies Near me.

Grade Introduction:
OHNS steel is a general-purpose tool steel that is typically used in applications where alloy steels cannot provide sufficient hardness, strength, and wear resistance. Chemical composition of OHNS is Carbon 0.94%, Manganese 1.2%, Silicon 0.30%, Chromium 0.50% and Vanadium 0.15%.

Din 2379 Consolidates maximum wear resistance, great durability, exceptional front line maintenance, and treating resistance 12 % ledeburitic chromium steel. It can be nitrided after special heat treatment. It can be utilized as threading rolls and dies, icy trimming, cutting and stamping tools for sheet thickness’s up to 6 mm, accuracy cutting instruments for sheet thicknesses up to 12 mm.

Grade Application:
  • Blanking and stamping dies,
  • Punches,
  • Rotary shear blades,
  • Thread cutting tools,
  • Milling cutters,
  • Reamers,
  • Measuring tools,
  • Gauging tools,
  • Woodworking tools,
  • Broaches,
  • Chasers.

Equivalent grades:
STANDARDS100MnCrW4O1DIN 2510AISI O1AFNOR 90MWCV5JIS SKS3

Addition to other grades:
MS, EN1A, EN3B, EN8, EN8D, EN9, EN19, EN24, EN31, EN32B, EN36C, EN41B, EN43B, EN47, EN353, IS2062, 42Crmo4, HCHCR, D2, D3, H-11, H-13, CW-1, M2, M35, M42, 2714, SKD-11, P20, P20+S, P20+Ni, SCM 420, ASTM SA-36, ASTM SA-105, SAE 1018, SAE 1020, SAE 4140, SAE 8620, 16MNCR5, 20MNCR5, C20, C35, C40, C45, C50, C60, CK45, 20C8, 40C8, 45C8, 55C8, C55MN75, SAE 52100, S40C, S355J2G3.

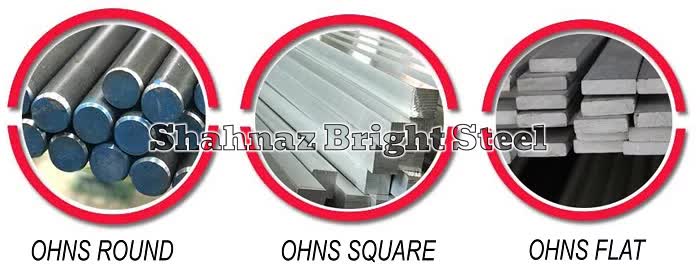

Our Supply Range:

Price List:

People also search as:
OHNS, OHNS Steel, OHNS Chemical composition, OHNS Mechanical properties, OHNS Equivalent Grades, OHNS Steel plate, OHNS Steel sheet, OHNS Manufacturers, OHNS Suppliers, OHNS Dealers, OHNS Stockist, OHNS Distributors, OHNS Wholesalers, OHNS Traders.

Chemical composition:
The following table shows the chemical composition of  OHNS steel:
ElementCSiMnPSCrW
Content(%)0.85-1.000.15-0.351.00-1.200.03 Max0.03 Max0.50-0.700.50-0.70

Mechanical Properties:
Maximum Stress(N/mm²)Yield Stress(N/mm²)ElongationImpact Strength (joule)Hardness value (BHN)
95046510%25288

Hardness:
Max. 230

Heat treatment:
Soft Annealing °C750-780
CoolingFurnace
Hardness HBMax. 230
Stress-relief Annealing °CApprox. 650
Hardening °C780-820
QuenchingAir, Oil, Salt Bath 180-220 °C
Hardness after quenching HRC65

Hardening:
O1 steels should be heated uniformly to 780-820°C (1436-1508°F) until completely heated through. If needed, the steels can be preheated at 300-500°C (572-932°F). About 30 min/per 25 mm of the ruling section is to be provided and then the steels should be immediately quenched in oil.

Tempering:
Tempering of O1 steels is performed at 177-260°C (350-500°F) to realize Rockwell C hardness of 62 to 57.
Physical Properties:
Thermal Conductivity at °CW / (m*K)
2033.4
35032.1
70031.1

Thermal Properties:
Thermal conductivity (K) 24.27 Wm -l k -l
Thermal diffusivity (k : K/pC) 6.687 × 104 m2/s
Forging Properties:
Forging of  Ohns O1 steels can be performed at 1038°C (1900°F) down to 857°C (1575°F) but not below 816°C (1550°F).

Stress Relieving:
Stress-relief Annealing °C – approx. 650

Normalizing:
After normalizing hardness is 40 HRC given on the Rockwell testing machine. It shows after normalizing the specimen becomes harder the annealing specimen, this is due to the formation of Bainite & Martensite.

Annealing:
Soft Annealing °C – 750-780

Density:
8670 kg/m 3

Machinability:
The machinability of O1 steels is very good with a rating of 90% that of water hardening low alloy steels. The optimum parameters of turning operation of OHNS Steel plates were spindle speed 1500 RPM, feed rate 0.06 mm, and depth of cut 1 mm. However OHNS Steel plate having good machinability characteristic and Produce reasonable surface finish. Spindle speed is a dominating parameter of the machining time turning process.
Welding:
The Oil Hardening Non-Shrinking (OHNS) die steel refers to a variety of carbon and alloy steels that are particularly well-suited for making tools. Though these steels are weldable, there is a risk of crack formation. But, this can be avoided with convinced specifications like preheating, proper choice of the electrode, etc., In the present work, OHNS die steel is welded with three different electrodes. The chosen electrodes were mild steel electrode, E312-16 chromium-based electrode, and E-NiCrFe-3 nickel-based electrode. The OHNS steel is welded with these three electrodes and the welded specimens were examined for hot cracking tendency and mechanical properties of the joint. The hot cracking tendency was assessed by Houldcroft’s weldability test (Fishbone test). All three electrodes proved good results in terms of hot crack resistance and the specimen welded with E312-16 chromium-based electrode provides good mechanical properties.
